Product feature
Product characteristics

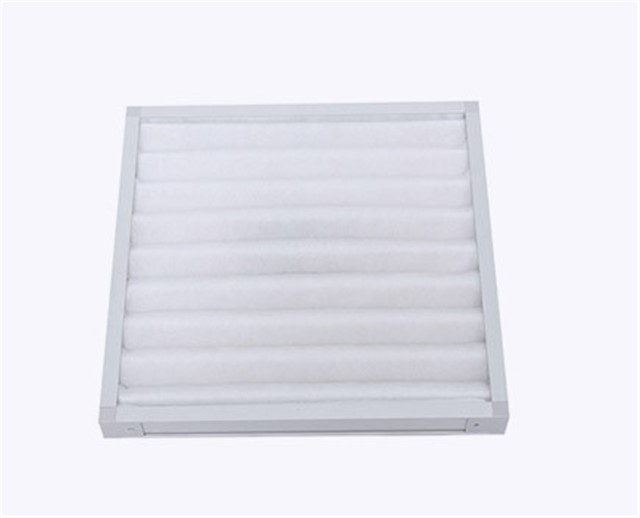

The exterior is framed with aluminum alloy
High dust capacity, low resistance
Double-sided aluminum protective mesh, easy to clean, long service life
Mainly filter more than 5um of particulate dust and a variety of suspended matter
Product efficiency
Efficiency: G2, G3, G4, G5 (in line with the new European standard EN779-2012)
Product structure
Adopts plate aluminum alloy frame, with ABS plastic Angle or aluminum alloy Angle, stable structure
The use of polyester fiber filter material covered with mesh, so that the product has lower resistance and greater dust capacity
Product application
Pre-filtration of air conditioning and ventilation system to avoid ash pollution inside the system
Large air compressor pre-filtration
Clean room centralized ventilation and air conditioning system and return air filtration to extend the service life of the post-stage high efficiency filter
The ventilation system of ordinary industrial plants can meet the general clean demand of air
Product parameter
| Model number | Actual size W*H*D(mm） | efficiency EN779 | Rated air volume m3/h | Initial resistance at different air volumes Pa | Suggested final resistance Pa | ||
| 70% | 100% | 120% | |||||
| LS-G2-29 | 290*595*46 | G2 | 1700 | 25 | 40 | 55 | Initial resistance 2-2.5 times |
| LS-G2-49 | 490*595*46 | G2 | 2800 | 25 | 40 | 55 | |
| LS-G2-59 | 595*595*46 | G2 | 3400 | 25 | 40 | 55 | |
| LS-G3-29 | 290*595*46/21 | G3 | 1700 | 35 | 55 | 70 | |
| LS-G3-49 | 490*595*46/21 | G3 | 2800 | 35 | 55 | 70 | |
| LS-G3-59 | 595*595*46/21 | G3 | 3400 | 35 | 55 | 70 | |
| LS-G4-29 | 290*595*46/21 | G4 | 1700 | 45 | 70 | 95 | |
| LS-G4-49 | 490*595*46/21 | G4 | 2800 | 45 | 70 | 95 | |
| LS-G4-59 | 595*595*46/21 | G4 | 3400 | 45 | 70 | 95 | |
