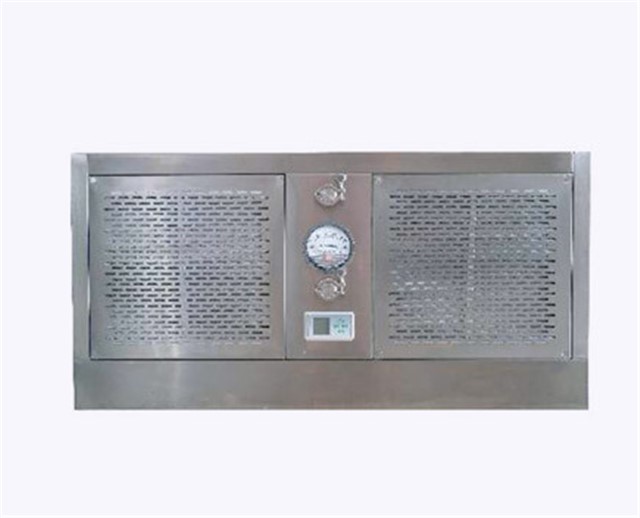

Product introduction
A laboratory device which flows filtered air onto a specially enclosed work surface. Typically, eye banking uses vertical flow hoods, which projects clean filtered air down onto the work surface. This prevents particulate and microbial contamination, while protecting the technician from the potential exposure to infectious material being handled.
Product feature
Structure specification
The whole is made of SUS304 stainless steel material, the use of high-power fan or central air conditioning system to return the air, temperature and humidity control is more convenient. The filter is sealed in liquid groove to ensure no leakage. The laminar layer air flow is vertical unidirectional flow, and the air outlet surface can be equipped with a flow equalization film. The wind speed is 0.36-0.55m/s, and the unidirectional flow state can be proved by flame fog test. The PAO dust port is installed on the laminar flow hood, and the PAO upstream sampling port enables on-site testing of each filter. Anti-static PC board or anti-static soft curtain is used as the isolation device of laminar flow hood.
Product characteristics
Can pass GPM verification requirements
The whole is made of SUS304 stainless steel material
It adopts liquid groove sealing form to ensure no leakage
Using touch screen control mode, the running state of laminar flow hood can be displayed
High performance energy-saving fan, low power consumption, low noise, low vibration
Product application
Widely used in precision machinery, electronics, biopharmaceuticals, hospitals, laboratories and other fields with strict requirements for cleanliness.
Product parameter
| Cleanliness level | Class A (GMP compliance) |
| Filter efficiency | H14(99.99%,0.3um) |
| Seal form | Tank seal |
| Face wind speed | 0.36-0.55m/s |
| noise | ≦65dB |
| illuminance | ≧300IX |
| Overall material | SUS304 Stainless steel |
