Product feature
Working principle
CJ type clean table is a horizontal flow type local purification equipment, indoor air through the coarse filter, the low noise fan pressure into the static pressure box, and then through the high efficiency filter uniform flow, the formation of clean air through the work area with uniform wind speed, forming a high cleanliness working
Product structure

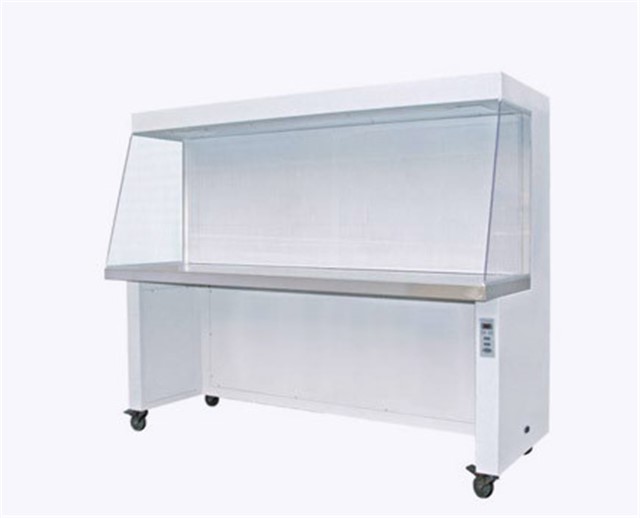

CJ type clean workbench is composed of coarse filter, fan, static pressure box, and high efficiency air filter. The box is bent, assembled and welded by steel plate. The surface is painted (plastic) after rust prevention treatment. The electrical control system is installed in the lower box.
Product parameter
| Model number | CJ-840M | CJ-1450 |
| cleanliness | 100level（ISO5level） | |
| Colony count | ≤0.5 PCS/dish * hour (?90mm petri dish) | |
| Mean wind speed | 0.2-0.5m/s (adjustable) | |
| noise | ≤62dB（A weight） ≤65dB（A weight） | |
| illuminance | ≥300LX | |
| Vibration | ≤4um（xyzThree directions） | |
| Work area sizeW*D*L(mm） | 850*500*600 | 1450*500*600 |
| Overall dimensionW*D*H（mm） | 900*700*1450 | 1500*700*1450 |
| High efficiency filterL*W*L（mm） | 820*600*50/1 |
820*600*50/1 600*600*50/1 |
| Fluorescent/UV lamps | 14W①/14W① | 21W①/21W① |
| Power dissipation | 0.4KW | 0.8KW |
| Power source | AC monophase 220V 50HZ | |
| weight | 100kg | 150kg |
| operator | Single side | Double side |
