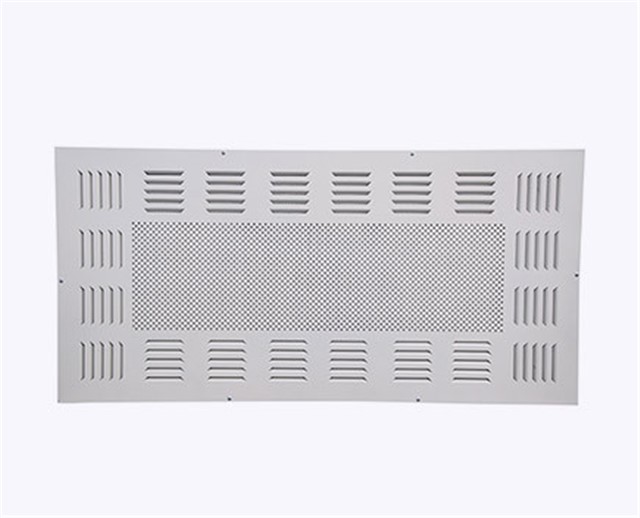

FFU With Diffuser

FFU With Diffuser

The fan filter unit (FFU) is a clean room clean equipment that combines air circulation and air filtration by a blower and a high-efficiency filter (HEPA/ULPA). It is mainly used to filter harmful dust particles in the air of the clean room, and continuously and stably supply clean air. Cooperate with the overall air change frequency planning to ensure that the clean room level meets international standards.

Product feature

Efficient, low noise turbofan

Computer 3D modeling, simulation analysis, higher efficiency, lower noise, with patented technology.

FFU has beautiful appearance and humanized design

Beautiful, user-friendly design.

FFU considerate, convenient design

The body is designed with a mounting pedal, so that the body installation, maintenance is more convenient. Retrofitted stainless steel available

FFU High performance low noise fan

Adopts multi-wing turbine energy-saving fan, low noise, uniform wind pressure diffusion, uniform and stable network speed of air outlet surface, low power consumption, low operating cost, working life of more than 80,000 hours.

FFU Multiple security protection

Touch control panel, no mechanical key switch, single key induction, safe and reliable, over current, over voltage, overheating protection.

FFU lightweight, thin body

Without filter, the body thickness is 23cm, the weight is only 25KG, and it can also be applied to places with low ceilings.

FFU optimized internal flow sharing design

Ensure FFU surface network speed uniformity deviation is less than 10% soil.

FFU flexible and diversified design

In addition to standard models, we can produce non-standard products of different specifications according to customer requirements. Such as: filter type, dumb material and other changes.

FFU features a wide range of accessories

Optional air inlet initial effect filter, air inlet nozzle, remote control, pressure differential meter and other optional accessories.

Product parameter

series F-2×2 F-2×3 F-2×4 F-3×4 F-4×4
W×L×H(mm) 575×575×250 575×875×250 575×1175×250 875×1175×275 1175×1175×275
Wind speed(m/h) 0.45 0.45 0.45 0.45 0.45
Air volume(m3/h) 550 900 1200 1650 2200
Total static pressure(pa) 250 220 210 250 205
power(w) 80 110 120 175 245
noise(dB) 50 51 52 54 56
Vibration(mm/s) 0.7 0.8 1.2 1.2 1.2
Power source 220-240V 50HZ
Main body Aluminum zinc alloy plate, stainless steel plate, electrolytic plate, leaded iron plate, aluminum alloy plate
